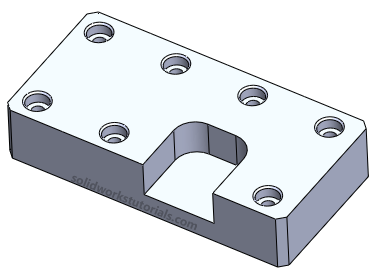

When you Linear Pattern any features and one of them miss the spot like this, you actually can skip this point using Instances to Skip option. Look on your lower left option…
Now click screw position you want to skip,
Instances selected and OK.
And your final part will look like this..
