Changing View by Axis Icon

Did notice a view orientation icon at lower left?

Did you know it can function as part viewer and can be clicked on it.

Lets try click on Y axis arrow and its arrow turn to gold color.

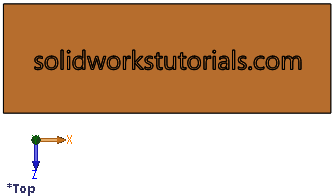

Click and you will see the part turn to top view!

Now lets try click on X axis arrow,

its show the right view.

So you can change the part view by click on axis icon arrow, have it try on z axis..
